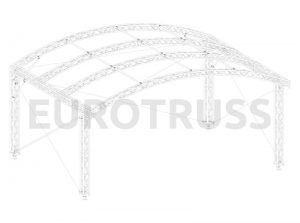

The AR-10 Beetle Roof is a fix leg based structure with four (three) arches with in between support tubes.
The arched roof structure consist of standard HD/FD34 mast truss sections on special small bases with integrated jacks and a few special corners to fit the triangular FD/HD33 arches. Between the arches standard hook on bars are required for extra stability and to support the canopy.
The AR-10 Roof comes in various dimensions 10x8m, 8x6m, 8x4m and 6x4m and all roofs are available in FD or HD Version. The top canopy is tightened with tubes and ratchet straps and the wall canopies can be either in full PVC or the wind through mash.

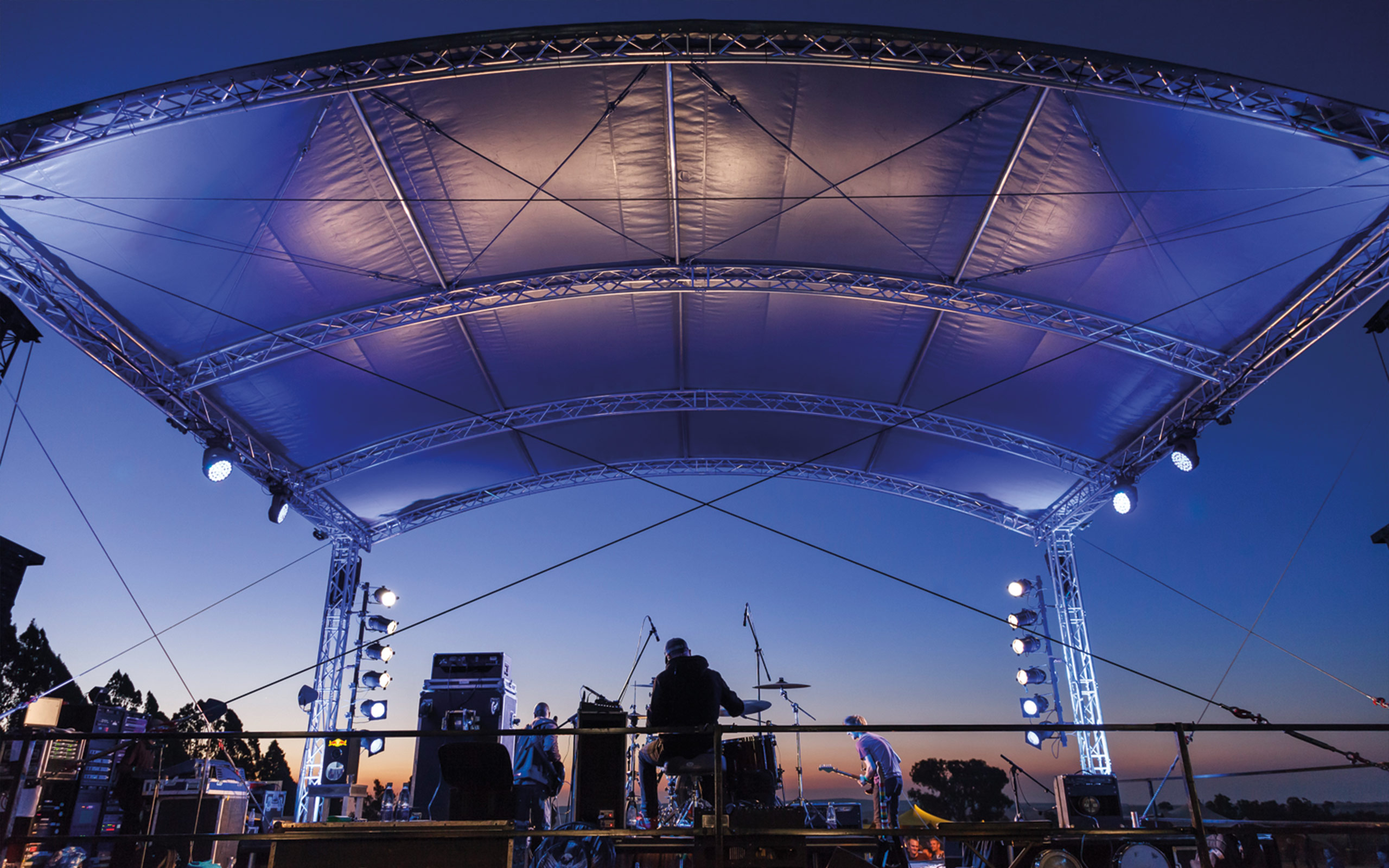

The AR-10 Roof is on many occasions the perfect solution by its low self weight, minimum of volume, easy and fast manual set up by 2 persons and a nice appearance. The Eurotruss Beetle roof is standard constructed out of FD truss but is also available in HD truss.
A structural report according the latest Eurocode norms and regulations is available.
