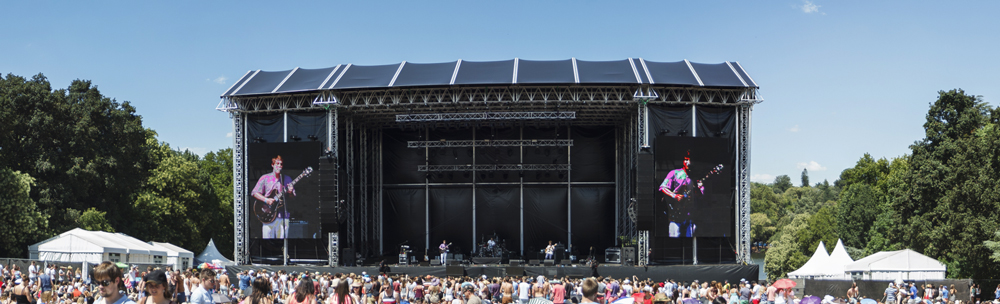

Truss Stage

Eurotruss designed a complete Truss Stage range in order to meet the market standards in terms of size, load bearing capacity, truss system, modularity and flexibility. The Eurotruss Roof System is a temporarily mobile structure to cover a stage and provide the possibility of hanging numbers of light fixtures, PA, Led Screens and other fixtures required to make a spectacular show under any given circumstance.

Eurotruss categorizes its roof systems to its shape, type and required stage size.

Eurotruss considers during development and design the safety, the environmental circumstances and the required load bearing capacity. All Eurotruss roof constructions are calculated according the current European Standards and Regulations.

The current standards for roof constructions (temporary structures) which have to be considered are EN 13814 (constructions) and EN 13782 (tents). Also the Eurocodes 1, 3, 5 and 9 had to be considered for calculating this temporary structures.

A Eurotruss Roof is designed under the following restrictions:

• The roof design should contain a reasonable number of standard truss types.
• Building on from an existing Eurotruss Ground Support System.
• Relative high loading figures for each size and type of roof.
• Each Eurotruss roof should apply to all safety regulations worldwide.

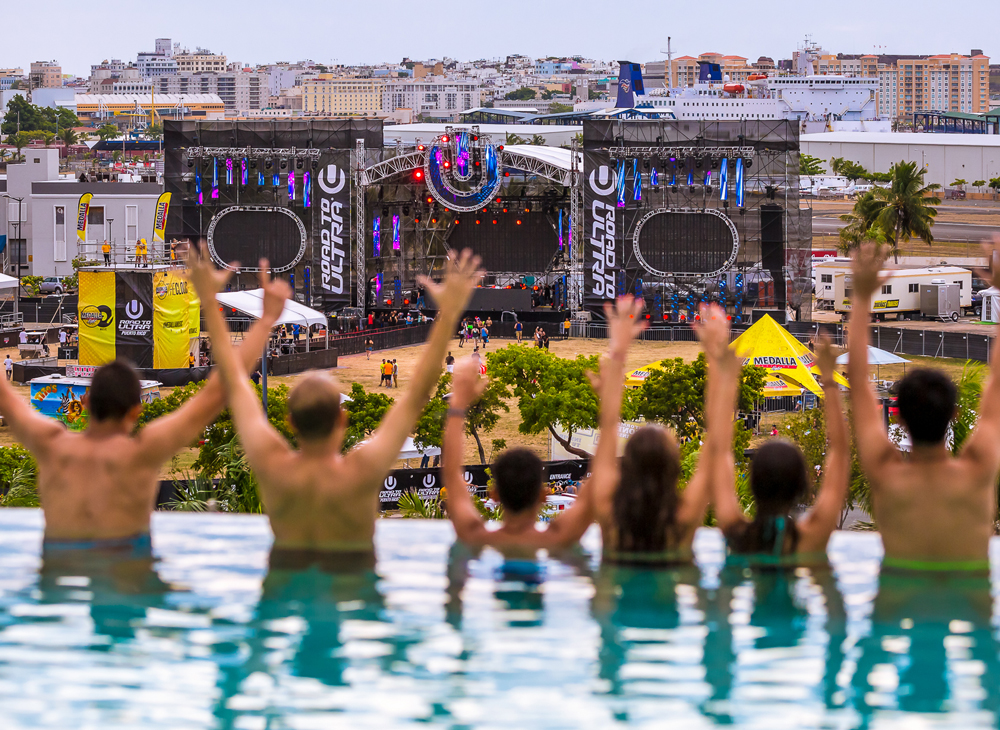

ARC Roof Truss Stage

The ARC Roofs are available in a fixed-leg (up to 10m/32ft wide)  and in a tower version (from 12 to 24m/39 to 78ft wide). The fixed leg Arcs  are based on fixed circle segments and special angled corners.

The tower Arcs have a hinged system using straight elements and on top a keder profile for full closing and flexibility in depth. The Arc Roofs carry  the highest load capacities and are mainly built from standard Truss sections.

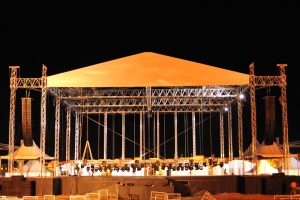

Saddle Roof Truss Stage

The SR Roofs are tower based structures with a saddle roof top. Designed and calculated to stand alone on its tower base or integrated in a scaffolding stage. The saddle roofs are all constructed using 95% of standard truss sections and have impressive load bearing capacities.

Classic but still the top seller with a wide variety of dimensions and loads from 6x4m (19x13ft) up to 24x16m (78x52ft).

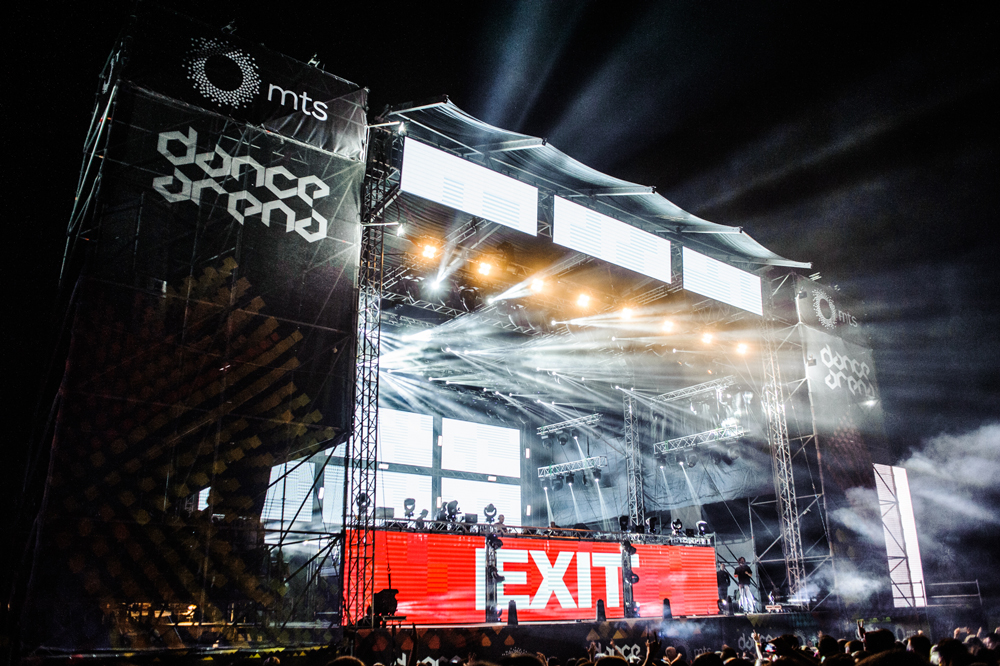

Pitch Roof Truss Stage

The PR Roofs are tower based structures with a pitched roof. This pitched roof has a standard cantilever and a PA frame at the front towers which can carry a massive PA Load, also the working platform to slide in the outer keder canopy. The towers are positioned under the roof and guarantee a fully closed roof top. The special tent profiles allows any variation in width and the main rig is built out of standard TT / TTS sections.

Designed and calculated to be integrated in a steel scaffolding stage. Massive load capacity and the number 1 alternative for steel roof systems.

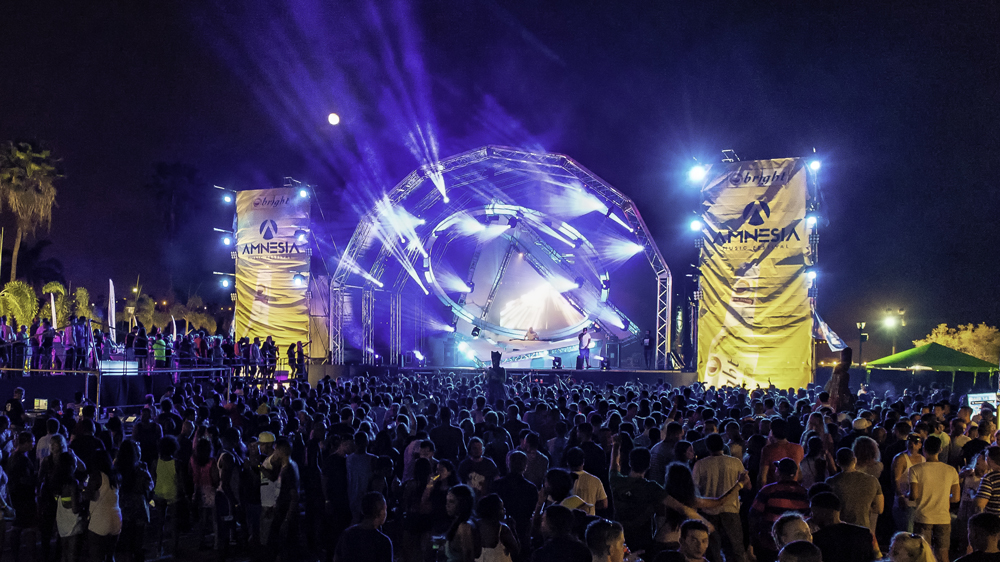

Tunnel Roof Truss Stage

The Tunnel Roofs are available in the most economic and popular sizes of 12x10m / 14x12m / 14x14m. (39x32ft /  45x39ft / 45x45ft) The Tunnel Roofs carry great features like impressive free clearances, huge load capacities, an integrated ladder truss cantilever and a clamped on keder tent profile that guarantees full closing and allows you full flexibility in depth.

The best feature is that these roofs are built out of standard Truss sections.
