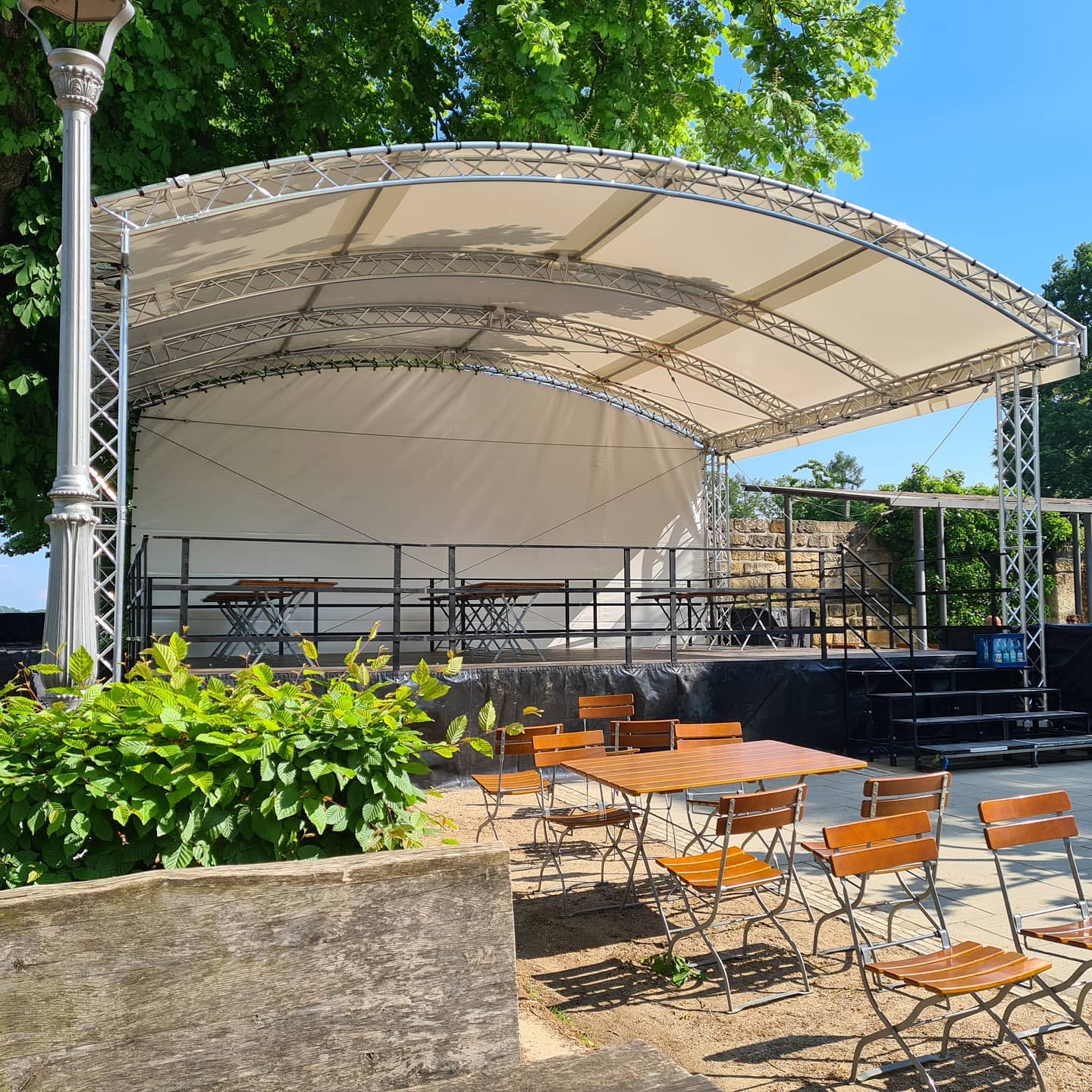

The AR10 Arc Roof is a fix leg based structure with four (three) arches with in between support tubes.
The arched roof structure consist of standard HD/FD34 mast truss sections on special small bases with integrated jacks and a few special corners to fit the triangular FD/HD33 arches. Between the arches standard hook on bars are required for extra stability and to support the canopy.
The AR10 Arc Roof comes in various dimensions 10x8m, 8x6m, 8x4m and 6x4m and all roofs are available in FD or HD Version. The top canopy is tightened with tubes and ratchet straps and the wall canopies can be either in full PVC or the wind through mash.
The AR10 Arc Roof is on many occasions the perfect solution by its low self weight, minimum of volume, easy and fast manual set up by 2 persons and a nice appearance.
*AR10 roofs are built with FD or HD, depending on their size
| Options for the AR10 roofs | |
|---|---|
| PA Wings | Optional up to 1.000 kg |
| Stage | Eurotruss Stage Decks, Arena Frame, or scaffolding integrated combined with decks |
| Cover | Sides & back PVC or mesh fabric walls |
| Color of Cover | PVC Black/Black, Black/Grey / Grey/Grey, other colours available on request |
| Ballast | Ballast Profi, Water Tanks, Concrete etc. |
| Compression beams | Adding compression beams helps reducing the need amount of ballast |
