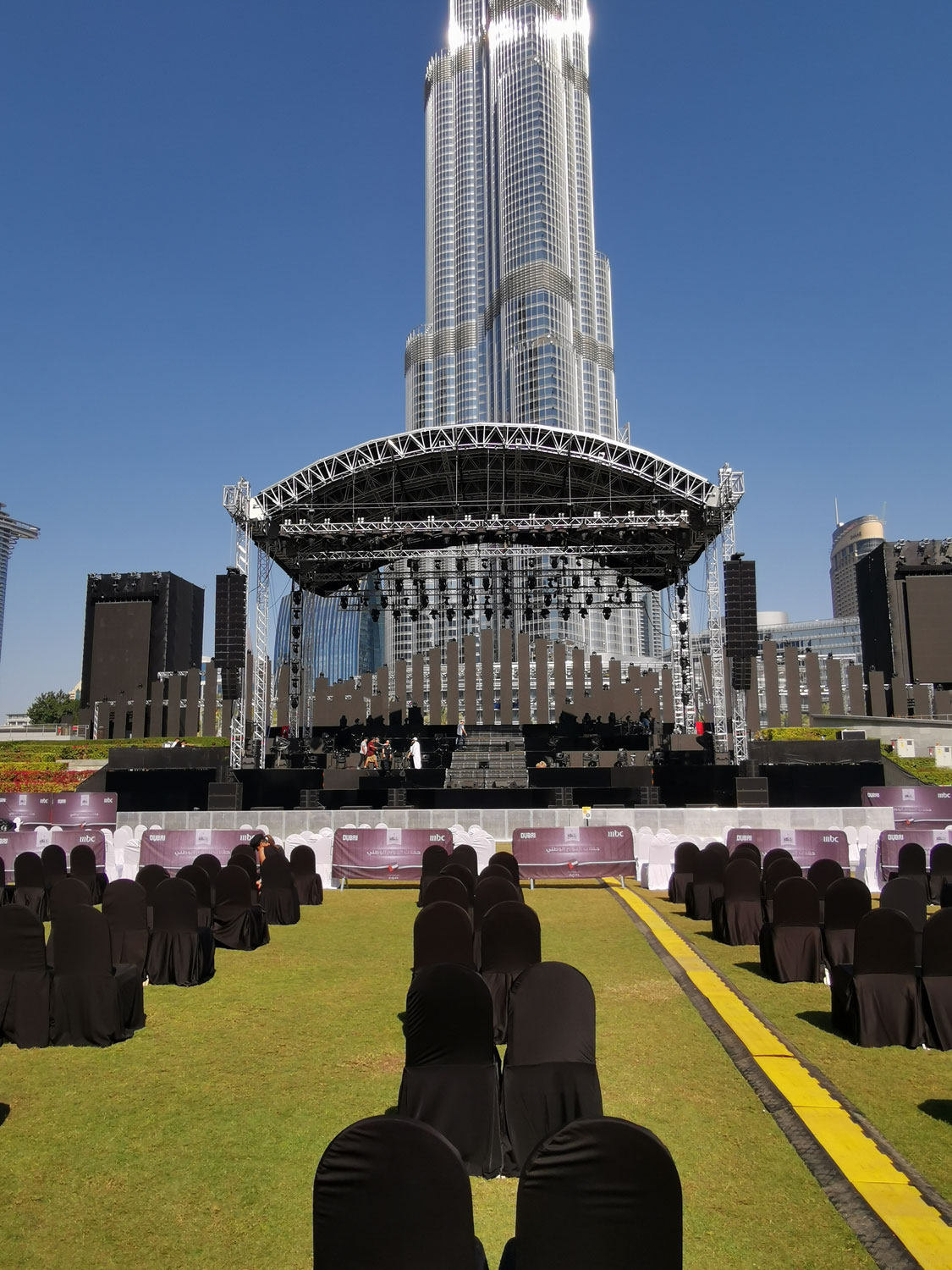

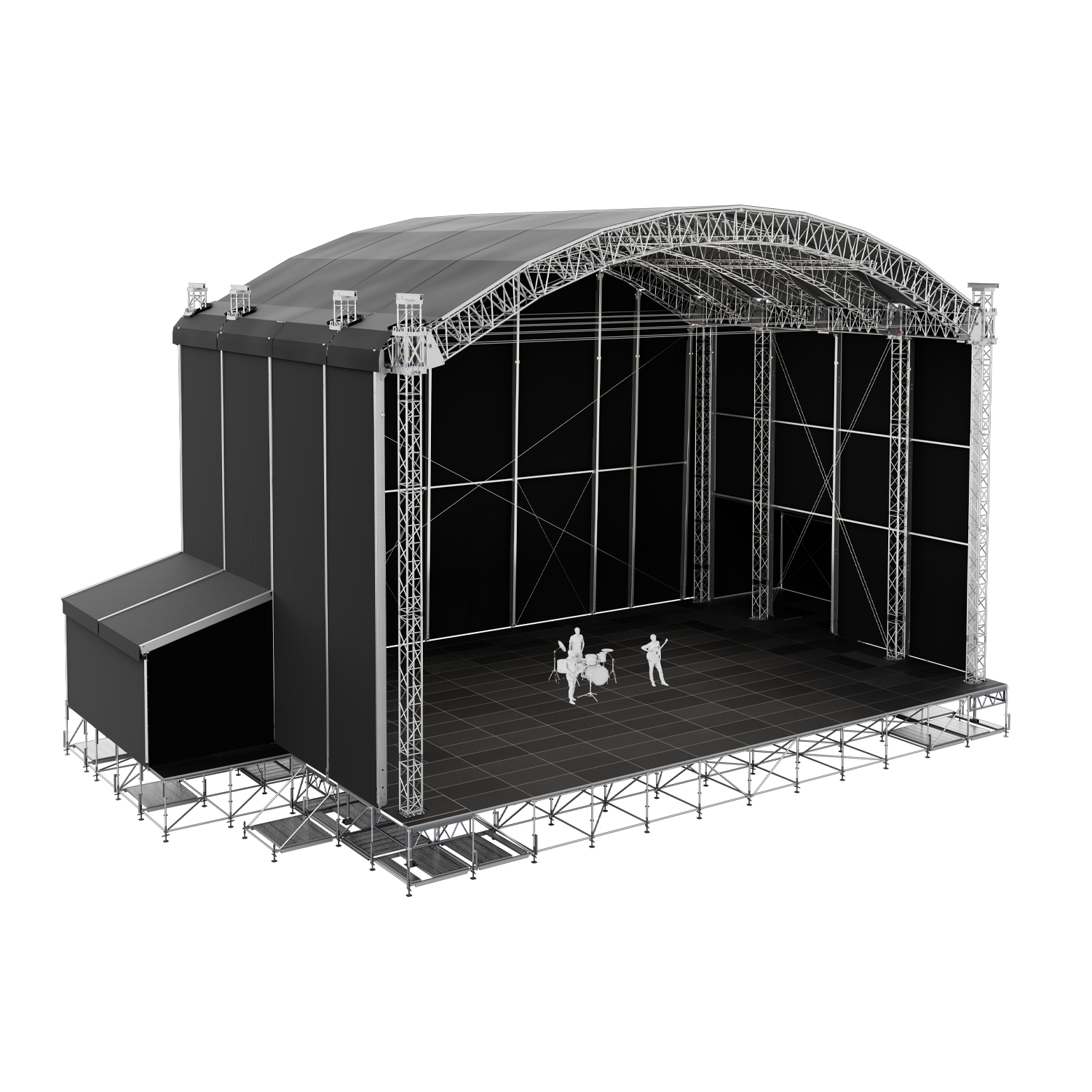

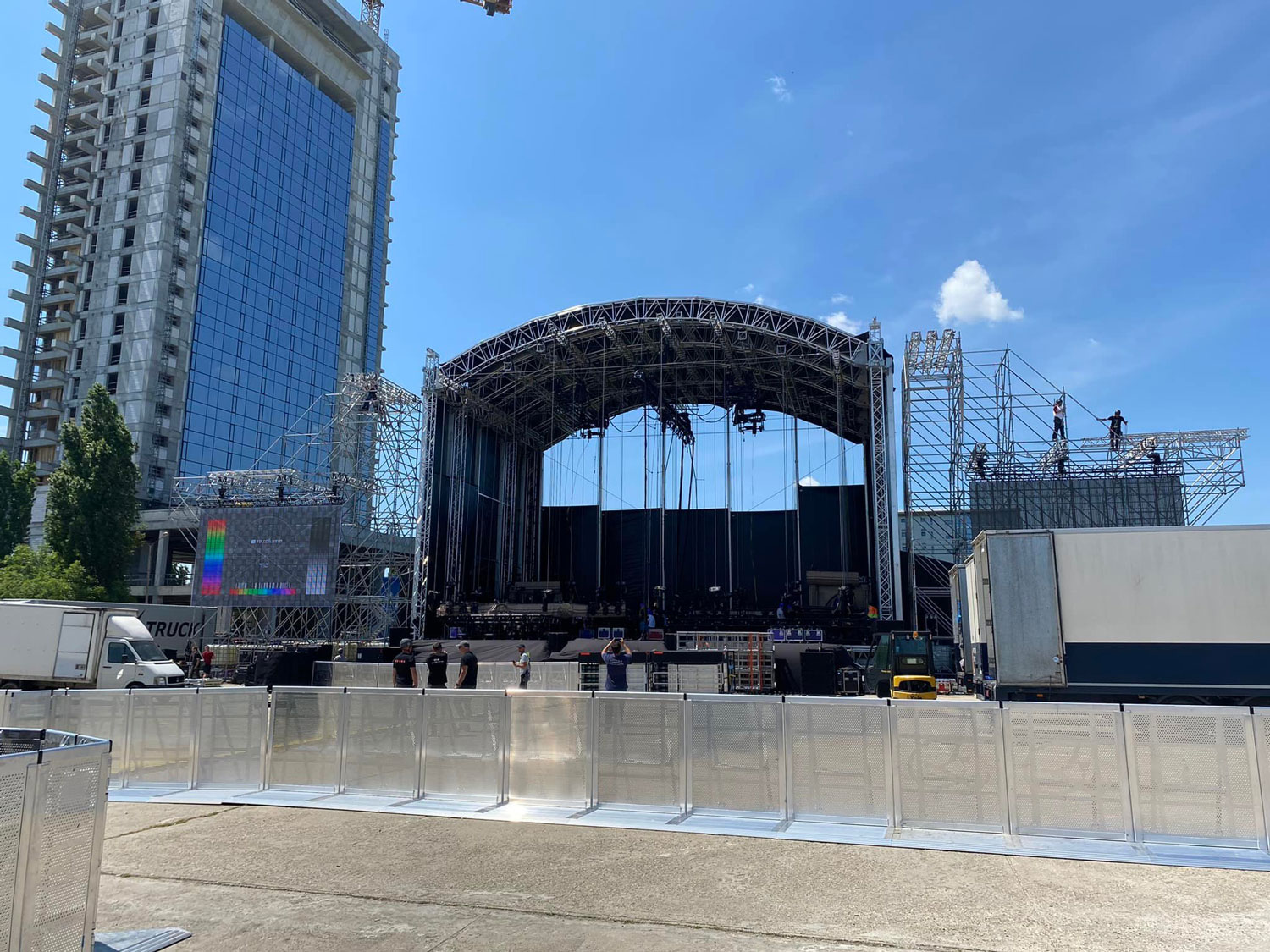

The AR30 Roof is a tower based structure with 5 arches (4 on the 17 meter version). The arched roof structure consist of standard TT truss sections with hinges and spreader plates and supported with spreader truss which gives stability and massive strength that leads to huge multi point loads.
The AR30 is designed and set up in such a way which makes it possible to build the roof in various configurations as size of the keder profiles match the TT truss sections. The Roofs are designed to be setup integrated in as scaffolding stage or alternatively on ballast bases with compressions beams. Sidehouses and keder walls are only possible when constructed within scaffolding.
The Arches are attached by a hinged connection at the outer ends to the TD50 Tower. The arched truss has a keder profile on top to fit the canopy.
The AR30 Mega Roof is standard available and pre calculated with the dimensions 23x16m, 21x16m both on eight Towers and 17x12m on six Towers. The AR30 has the highest load bearing capacity of all Arc Roofs.
Options for the AR30 roofs | |
---|---|
PA Wings | Optional up to 4.000 kg |
Stage | Eurotruss Stage Decks, Arena Frame, or scaffolding integrated combined with decks |
Cover | Top, sides & back PVC or mesh fabric walls |
Color of Cover | PVC Black/Black, Black/Grey / Grey/Grey, other colours available on request |
Ballast | Ballast Profi, Water Tanks, Concrete etc. |
Compression beams | Adding compression beams helps reducing the need amount of ballast |
