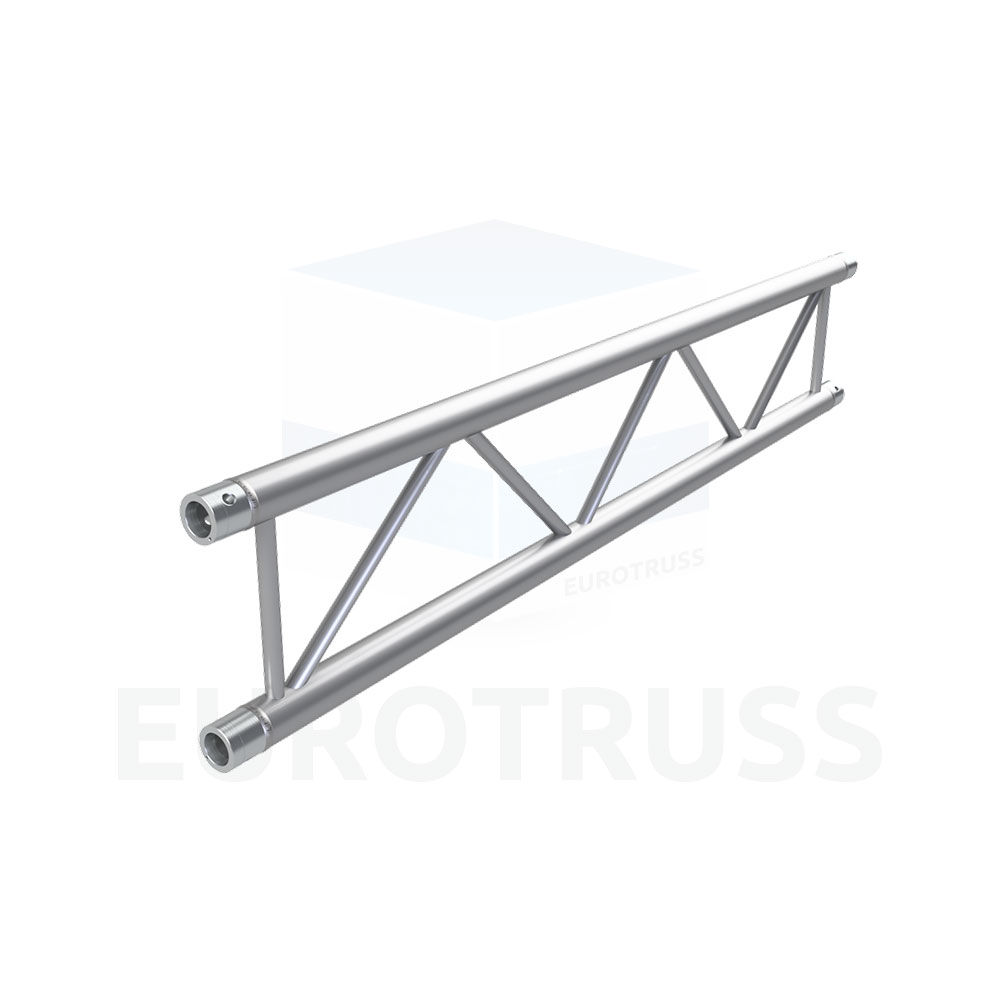

FD32 Ladder Truss
The FD32 Ladder truss, a truss for vertical and horizontal rigs, this truss made out of two main tubes combined with the eurotruss bracing pattern is already a great start. Together with the Tolerance free conical connector system the straight elements lend themselves perfectly to use a a span exposed to bending stress.
Combined with FD34 Truss they possess a broad range of applications.
Made with the fast connection system and approved according the DIN EN 1999-1-1 & 1999-1-1/A2 (Eurocode 9).
Facts
- TüV approved
- Also available in any non-standard length and shape
- Tolerance free conical connector system
- Compatible with FD34
Technical specifications
Height
290 mm / 11.42 in
Width
50 mm / 1.97 in
Main Tube
50 x 2 mm / 1.97 x 0.08 in
Braces
20 x 2 mm / 0.79 x 0.08 in
Weight
~3 kg/m / ~2 lbs/ft
Pin Position
Diagonal
Material
EN AW-6082 T6
Connection
CS1 - CON
Productcodes & Description
Productcode
Length
FD32-050
50 cm.
FD32-075
75 cm.
FD32-100
100 cm.
FD32-150
150 cm.
FD32-200
200 cm.
FD32-250
250 cm.
FD32-300
300 cm.
FD32-350
350 cm.
FD32-400
400 cm.
