FLS-066

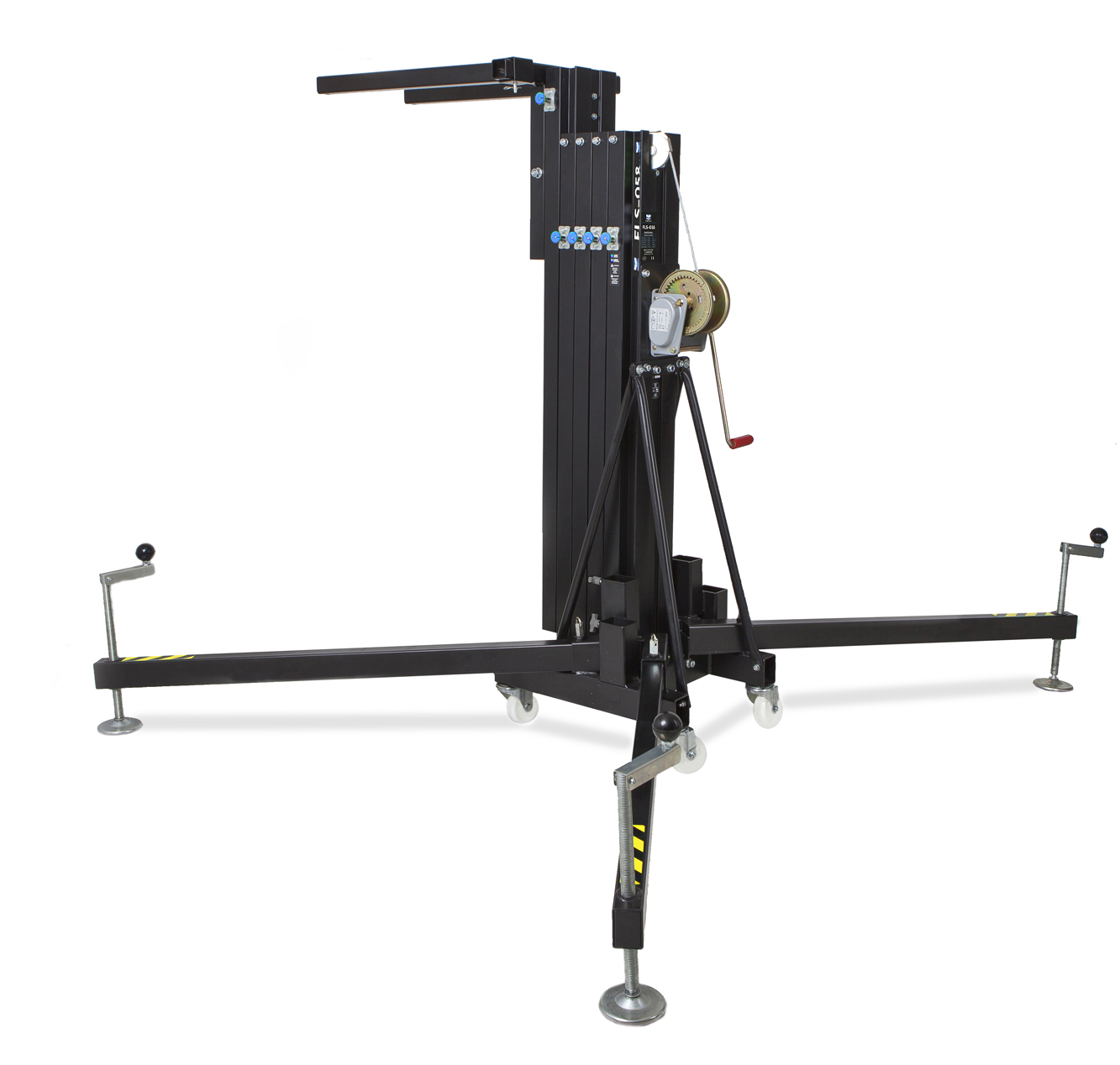

The new FLS-066 lifter has been designed for lifting line array audio systems from the ground and to keep them fix at high altitude. By introducing new reinforcement profiles to the base profile and a larger leg opening.

This lifting tower is very compact and easy to handle.

It has 4 swivel wheels at the base and It fits through a door. It has powerful stabilizers in the legs, to level the lifter in terrain with minor differences. It has two adjustable steel load forks that support the load, either supported on top of it, or hung underneath.

The FLS-066 features the ALS Blue locks, which automatically blocks each section while lifting. And the inertial pendulum ILS safety system for the aluminum lifting carriage.

Facts

  • Main body made out of 6082-T6 alluminium
  • Steel base and legs DIN 2394, catches and pulleys of ST-37 steel.
  • Winch with automatic brake. Certification CE and GS TÜV.
  • Steel cable guided by channelled steel pulleys with ball bearings.
  • Steel cable DIN 3060. Quality 180 Kg/mm2 twist resistant. Cable diameter : 6 mm.
  • Exclusive ALS system (Auto-Lock Security)

Technical specifications

Weight
144Kg (317lb)
Min. load
25 kg / 55 lbs
Max. load
270Kg (595 lb)
Min. height
1.78m (5.8′)
Max. height
6,65m (21.8′)
Unfolded base
2,15 x 1,88 m (7.1 x 6.9)
Folded size
60x40x178 cm
Number of profiles
5
Fork
74,5 cm / 29.3 in

Productcodes & Description

Productcode
Color
Type
FLS-058
Black
Frond loader sound
