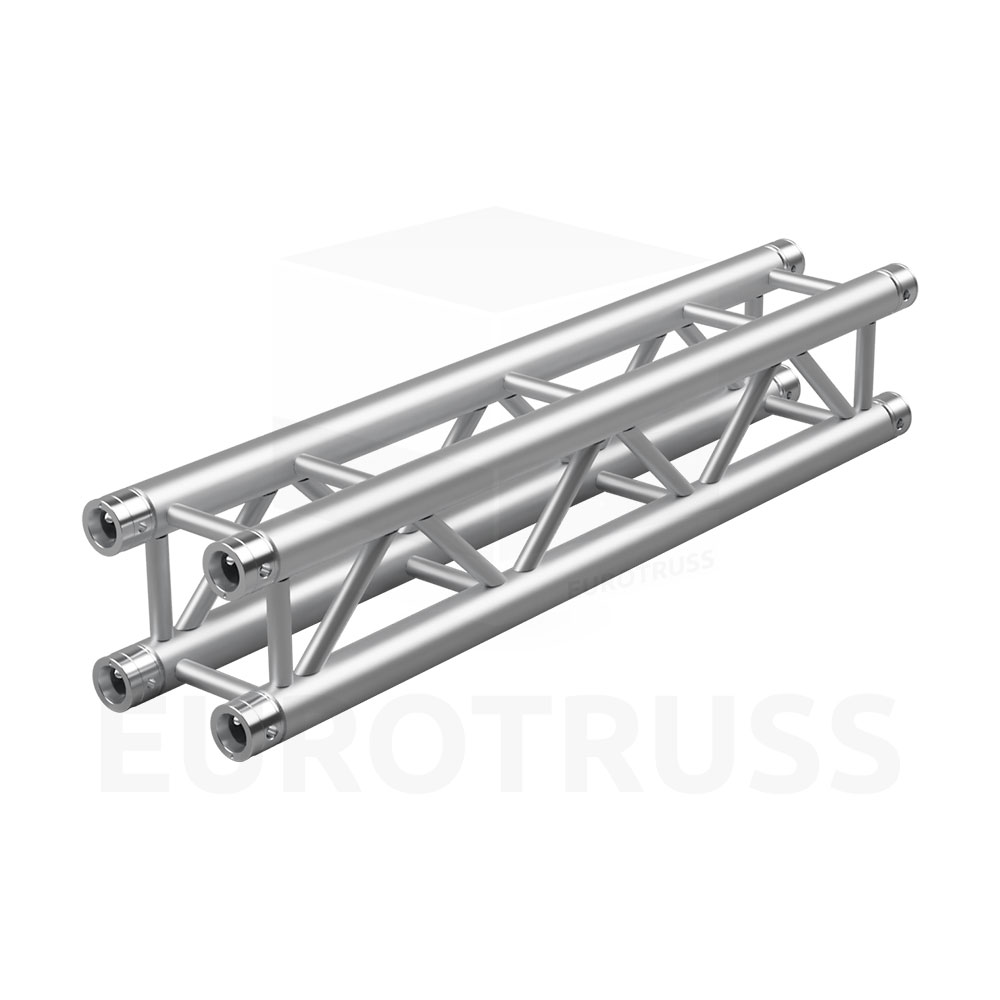

HD24 Square Truss

New added to the range is a box truss with the heavy duty ingredients but limited in size.

The HD24 is only 195x195mm and therefore perfect to use where low height but medium to heavy loads are needed up to free spans of 14m. The truss is made of 50x3mm main tube, build with the standard conical connector and with its small size, the perfect truss for minimum storage and trucking space.

The horizontal pin position assures a fast and easy setup. Corner Blocks are available.

Made with the fast connection system and approved according to the DIN EN 1999-1-1 & 1999-1-1/A2 (Eurocode 9).

  • Special bracing pattern
  • Strong maintube & standard CS1-CON
  • Horizontal pin position which ease and fasten installation
  • Universal corner block system allowing you to make all directions
  • Low headroom

Technical specifications

Height
195 mm / 7.7 in
Width
195 mm / 7.7 in
Main Tube
50 x 3 mm / 1.91 x 0.12 in
Braces
20 x 2 mm / 0.78 x 0.12 in
Weight
~5 kg/m / 3.35 lbs/ft
Pin Position
Horizontal
Material
EN AW-6082 T6
Connection
CS1-CON

Productcodes & Description

Productcode
Length
HD24-050
50 cm
HD24-100
100 cm
HD24-150
150 cm
HD24-200
200 cm
HD24-250
250 cm
HD24-300
300 cm
HD24-350
350 cm
HD24-400
400 cm
