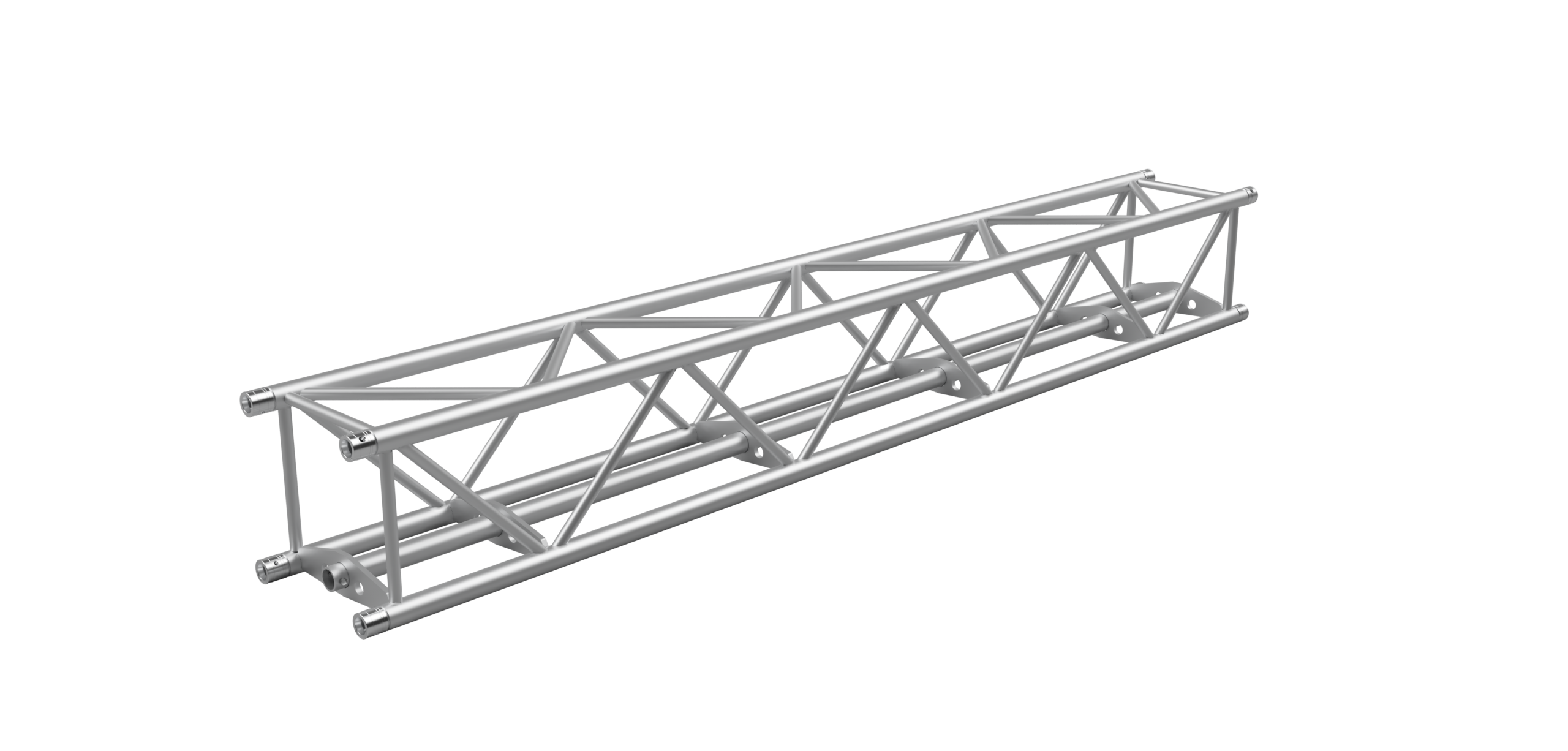

HDX45 LED Truss

HDX45 is a square truss based on the ‘’Eurotruss original’’ HD44 Truss, are you having issues with placing loads like LED screens, lighting fixtures, or decor on a central position of the truss? Then look no further. HDX45 is the best solution!

The HDX45 truss is based on 50×4 mm main tube which ensures strength and maximum durability, the truss is designed for high-frequency usage or fixed installations. It is available in standard lengths up to 4 meters. A 50×4 mm additional tube is placed in the center of the truss at the bottom and allows rigging bars of LED screens or other loads to be connected directly. This center chord has a slightly higher trim height than other LED Screen Truss solutions, and the use of narrow aluminum plates instead of tubes allows more space for the positioning of clamps or slings.

If the additional center tube is used, logically other loading capacities apply. Therefore, multiple load tables have been made available for this truss. These are discussed in more detail in the following pages.

HDX45 can be combined with HD44 truss lengths because it has the same geometry size*. The truss is also equipped with our well-known CS1 coupling system. Finishing by powder coating in various colors is available upon request.

*Please consider deadweights of the heavier system in combination with the load ability of the HD44

Technical specifications

Height
400 mm
Width
400 mm
Main Tube
50 x 4 mm
Braces
20 x 2 mm
Weight
~11 kg/m
Pin Position
Diagonal
Material
EN AW-6082 T6
Connection
CS1-CON

Productcodes & Description

Productcode
Description
HDX45-050
HD45 = HD44 Box Truss Length 50cm + middle beam
HDX45-100
HD45 = HD44 Box Truss Length 100cm + middle beam
HDX45-150
HD45 = HD44 Box Truss Length 150cm + middle beam
HDX45-200
HD45 = HD44 Box Truss Length 200cm + middle beam
HDX45-250
HD45 = HD44 Box Truss Length 250cm + middle beam
HDX45-300
HD45 = HD44 Box Truss Length 300cm + middle beam
HDX45-350
HD45 = HD44 Box Truss Length 350cm + middle beam
HDX45-400
HD45 = HD44 Box Truss Length 400cm + middle beam
