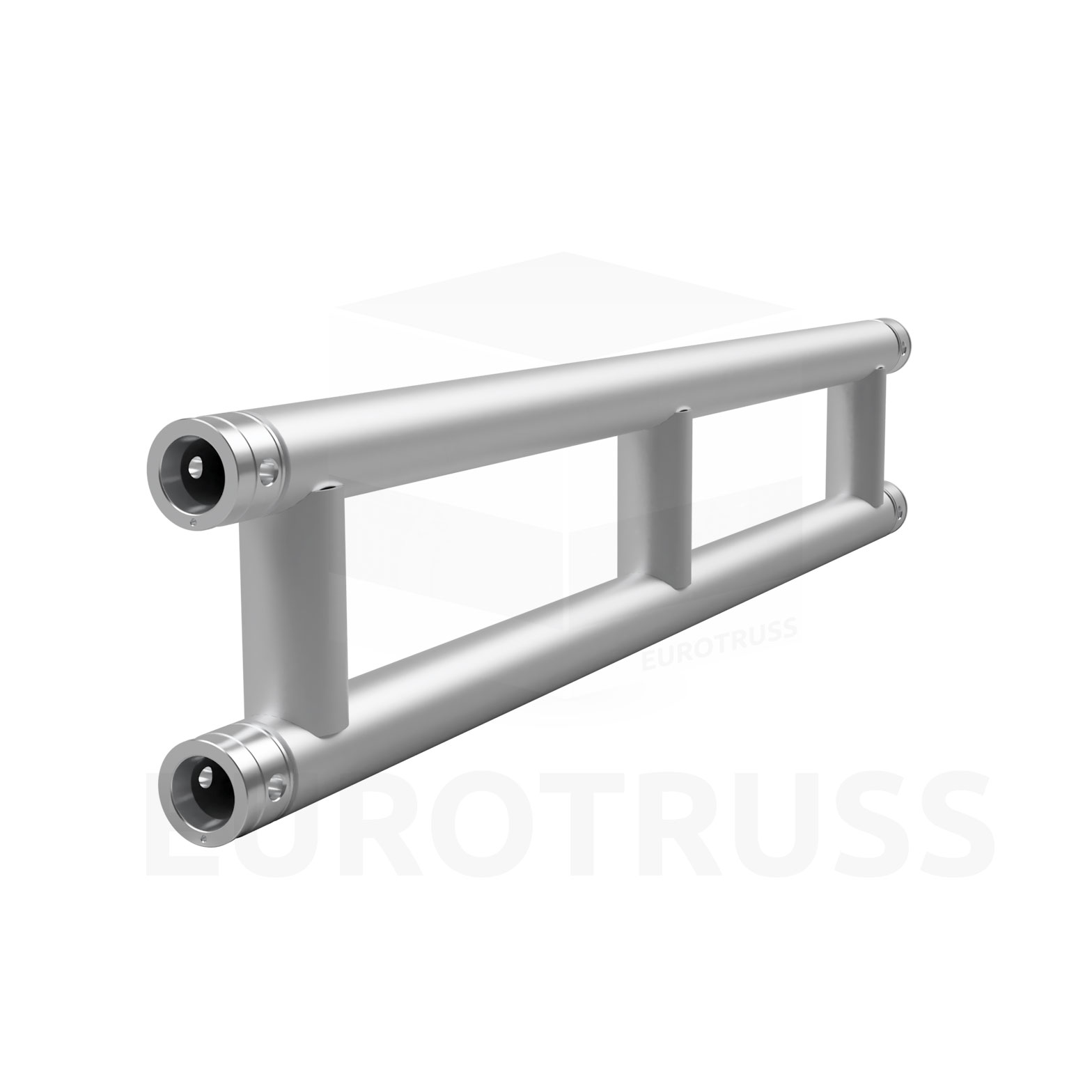

JT20 Ladder Truss

A new specific ladder beam truss has been added to the Eurotruss product range.

The JT20 is designed for low headroom purposes like studios and exhibition stands. The truss is made of 50x3mm main tube, build with the standard conical connector and with only a 195mm height, the perfect truss for vertical loads in low headroom areas.

Corner Blocks allows you to build matrix frames and the horizontal pin position assures you a fast and easy setup.

Made with the fast connection system and approved according to the DIN EN 1999-1-1 & 1999-1-1/A2 (Eurocode 9).

  • Low headroom
  • Massive strong maintube & standard CS1-CON
  • Horizontal pin position which ease and fasten installation
  • Universal corner block system allowing you to make all directions
  • Only 195mm high!

Technical specifications

Height
195 mm / 7.7 in
Width
50 mm / 1.9 in
Main Tube
50 x 3 mm / 1.9 x 0.12 in
Braces
50 x 3 mm / 1.9 x 0.12 in
Weight
~3kg/m / ~2.0 lbs/ft
Pin Position
Horizontal
Material
EN AW-6082 T6
Connection
CS1-CON

Productcodes & Description

Productcode
Length
JT20-050
50 cm
JT20-100
100 cm
JT20-150
150 cm
JT20-200
200 cm
JT20-250
250 cm
JT20-300
300 cm
JT20-350
350 cm
JT20-400
400 cm
