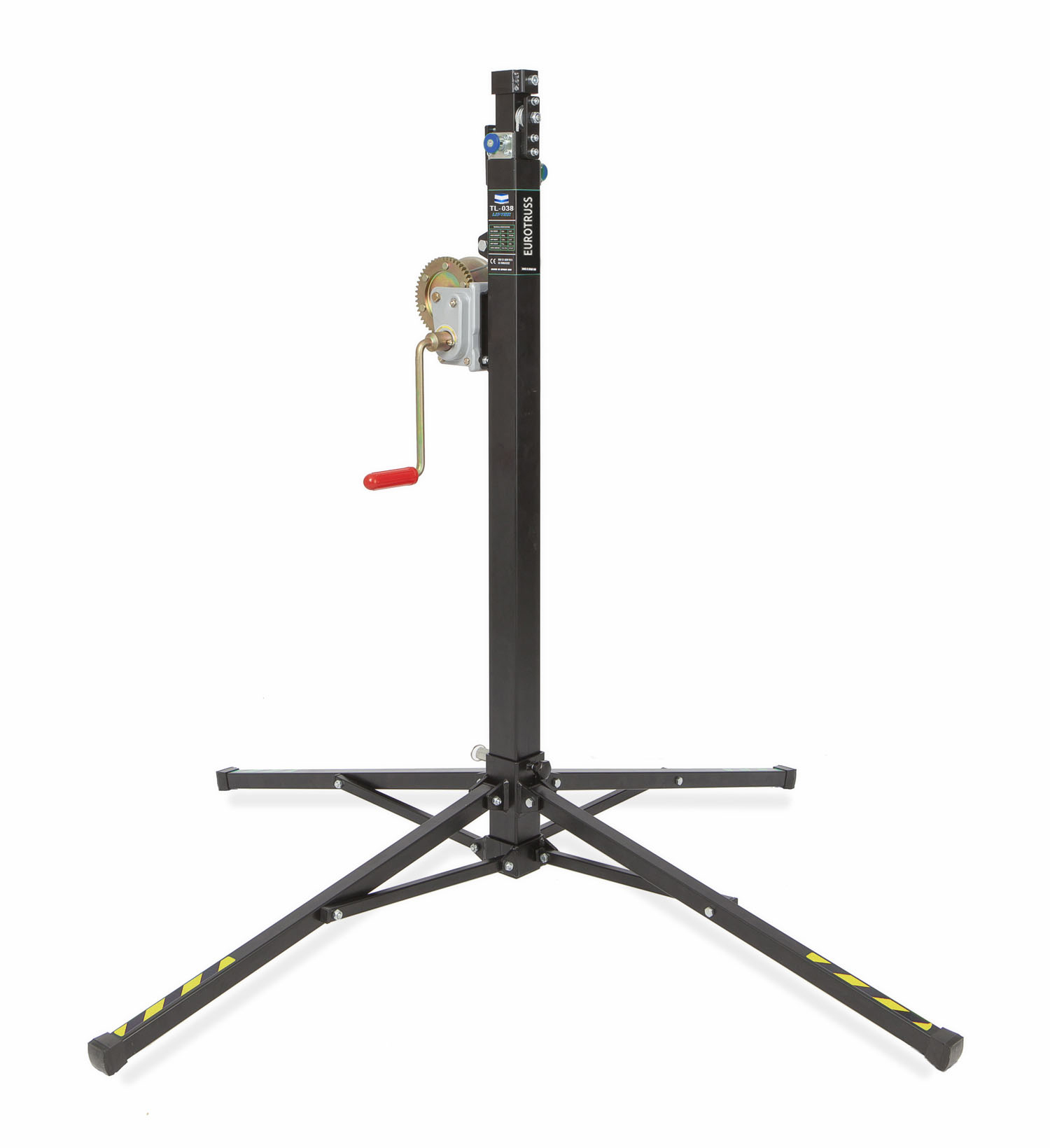

The TL-038 is with 3 profiles is the starter of the Eurotruss lifters family. The TL-038 can lift loads up to 125 kg to a maximum of 3.8 meters high. The high resistance cable for traction is guided by a lubricated pulley.
The lifter is fixed with hyper safety fastener locks to bear lifter strain.
- Steel profiles DIN 2394.
- Winch with automatic brake. Certification CE and GS TÜV.
- Steel cable guided by channelled steel pulleys with ball bearings.
- Steel cable DIN 3060. Quality 180 Kg/mm2 twist resistant.
- Cable diameter : 4 mm.
21 kg / 46 lbs
25 kg / 55 lbs
125 kg 275.6 lbs
1,28 m / 4,2 ft
3,2 m / 10.5 ft (with extension bar 3.8 m / 12.5 ft
35 mm / 1.37 in
1,5x1,5 m / 4.9x4.9 ft
